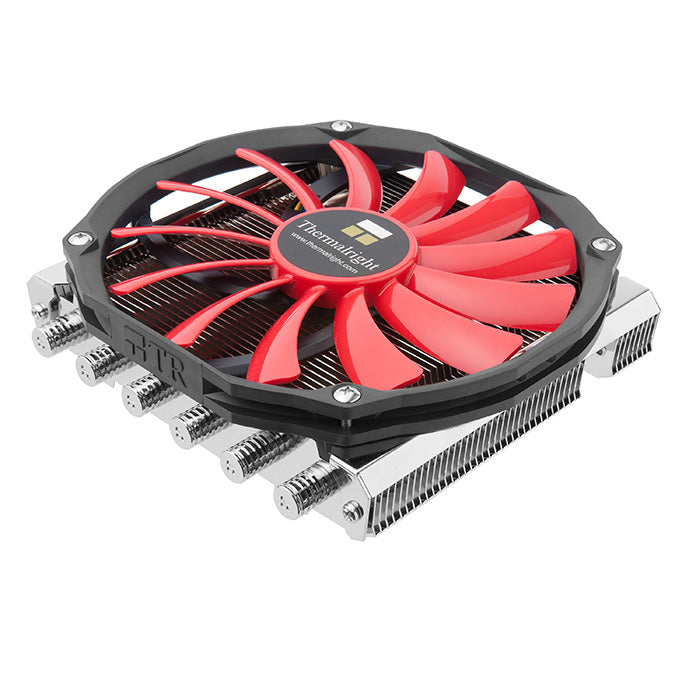

Thermalright AXP-200R
Thermalright AXP-200R
Log in to view trade pricing
Trade pricing and ordering are reserved for approved Aochips partners.
Log in to view trade pricing
Technical Spec :
Heatsink Specifications:
Dimension: L153 mm x W140 mm x H60 mm
Weight: 475g
Heat pipes: 6mm heatpipe x 6 units
Fin: T = 0.5 mm ; Gap = 2.0 mm
Fin Pcs: 1 17 17 5 9 = 49 pcs
Copper Base: C1100 Pure copper nickel plated
Motherboard to Fin: 22 8 = 30 mm & 34 8=42mm
TY-14013R FAN Spec
Dimension: L150 mm x W140 mm x H13 mm
Weight: 90g
Rated Speed: 700~1300RPM±15%
Noise Level: 30.6dBA(Max.)
Air Flow: 64.52CFM Click to enlarge
|
Motherboard Form Factor Compatibility ATX, Enhanced ATX, Micro-ATX Most ATX and mATX motherboards are compatible (we haven’t found one that is not compatible) Mini-ITX Check socket 1150 motherboard compatibility list below: |
| Socket Type 1150 | ||
| Manufacturer | Model No. | Show me photos |
| Asus ROG Asus Asus Asus Gigabyte Gigabyte MSI MSI MSI MSI Asrock Asrock Asrock | Maximus VI Impact H87I-PLUS H81I Z87I-DELUXE GA-H87N-WIFI GA-H87N Z87I H87I B85I H81 H87E-ITX H87M-ITX H81M-ITX |
VGA, RAM, Case** VGA, RAM, Case** VGA, RAM, Case VGA, RAM, Case** VGA, RAM, Case VGA, RAM, Case VGA, RAM, Case VGA, RAM, Case VGA, RAM, Case VGA, RAM, Case VGA, RAM, Case VGA, RAM, Case VGA, RAM, Case |
** Where a problem does arise is with some mini-ITX motherboards. The AXP-200 will extend outside the
motherboard past the memory slots (the I/O gasket is located directly opposite the memory slots).For this type of mini-ITX motherboard a case that would handle a high-end long video card would also
be appropriate for the AXP-200.
motherboard past the memory slots (the I/O gasket is located directly opposite the memory slots).For this type of mini-ITX motherboard a case that would handle a high-end long video card would also
be appropriate for the AXP-200.
