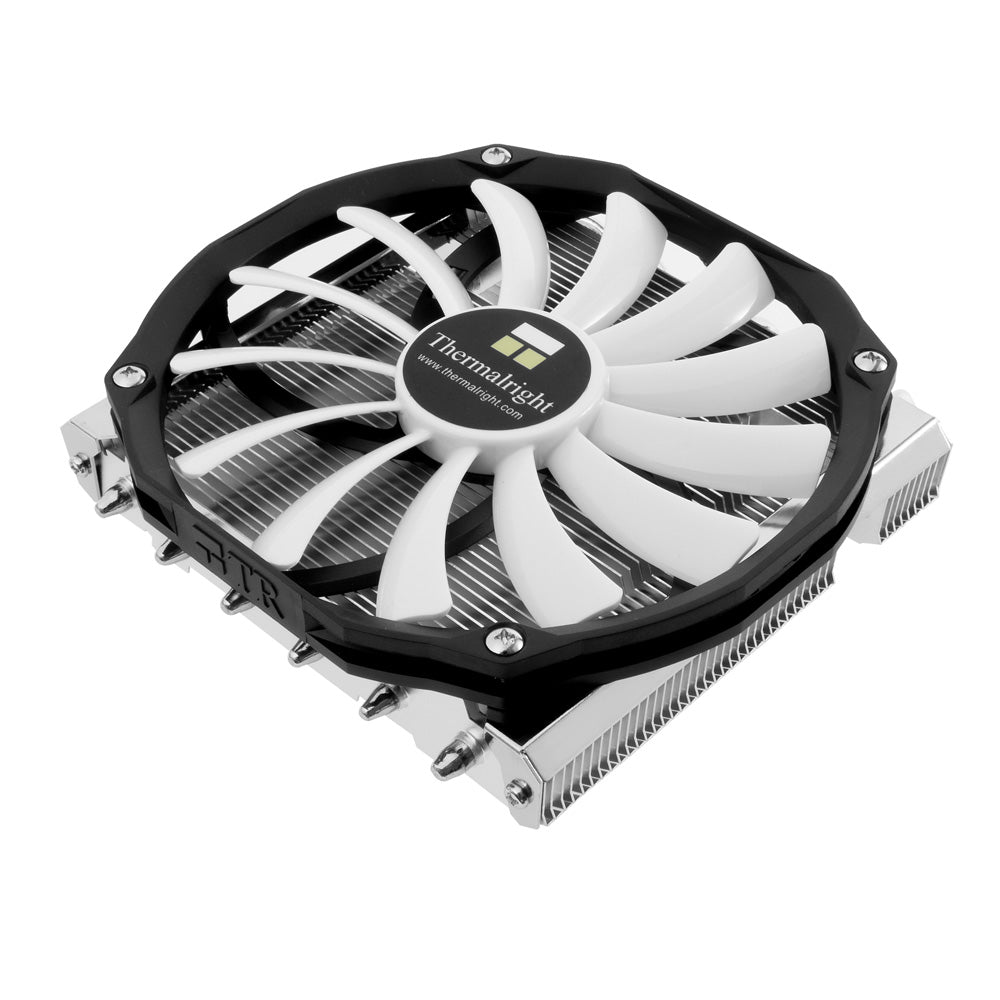

Thermalright AXP-200 Muscle
Thermalright AXP-200 Muscle
Log in to view trade pricing
Trade pricing and ordering are reserved for approved Aochips partners.
Log in to view trade pricingTechnical Specifications:
Specification:
Dimensions: L149.99mm x W139.99m x H59.65mm
Weight: 430 grams
Heat pipe: 6mm heat pipe × 6
TY-FAN 14013BW Specifications:
Dimensions: Length 150mm × Width 140mm × Height 13mm
Weight: 90 grams
Fan start: 700~1300RPM±15%
Fan noise: 21.7~30.6dBA
Air volume: 35.18~64.52CFM
Connector type: 4Pin PWM connector
Motherboard Compatibility
ATX, Enhanced ATX, Micro-ATX
Most ATX and mATX boards are motherboard compatible
Mini-ITX
Check your 1150 motherboard compatibility list below:
| socket type 1150 | ||
| manufacturer | model | View photos |
| Asus ROG Asus Asus Asus Gigabyte Gigabyte MSI MSI MSI MSI Asrock Asrock Asrock | Maximus VI Impact H87I-PLUS H81I Z87I-DELUXE GA-H87N-WIFI GA-H87N Z87I H87I B85I H81 H87E-ITX H87M-ITX H81M-ITX | VGA, RAM, Case** VGA, RAM, Case** VGA, RAM, Case VGA, RAM, Case** VGA, RAM, Case VGA, RAM, Case VGA, RAM, Case VGA, RAM, Case VGA, RAM, Case VGA, RAM, Case VGA, RAM, Case VGA, RAM, Case VGA, RAM, Case |
** In order to solve the Mini-ITX motherboard space problem, the AXP-200 Muscle will be designed to extend through the memory to the external motherboard (where the I/O spacers are directly opposite the memory slots).
Mini-ITX motherboard, AXP-200 Muscle can be installed even with high-end longboard display adapter installed.
Mini-ITX motherboard, AXP-200 Muscle can be installed even with high-end longboard display adapter installed.
